How to connect MongoDB (On-prem) with SharePoint

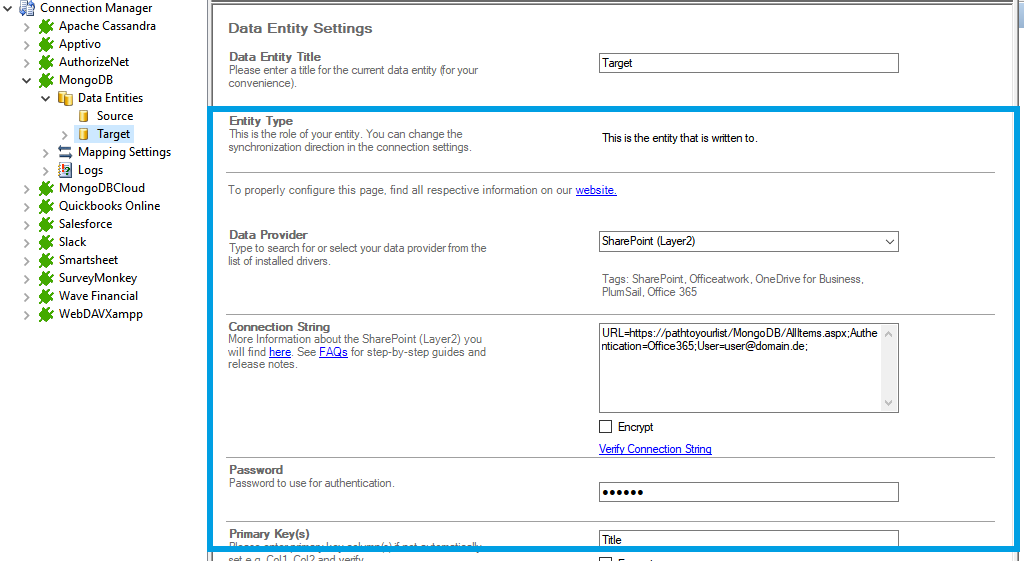

This "how-to-connect" documentation will explain the initial configuration of an example connection from a local MongoDB installation to a SharePoint Online List in Office 365. We will be synchronizing data stored in MongoDB. Please find a similiar sales@layer2.pro;" this property should describe the user you wish to connect to SharePoint to.

Enter the password that belongs to the user account used in the connection string into the Password field. Save your changes by using the right-hand pane option Save Changes.

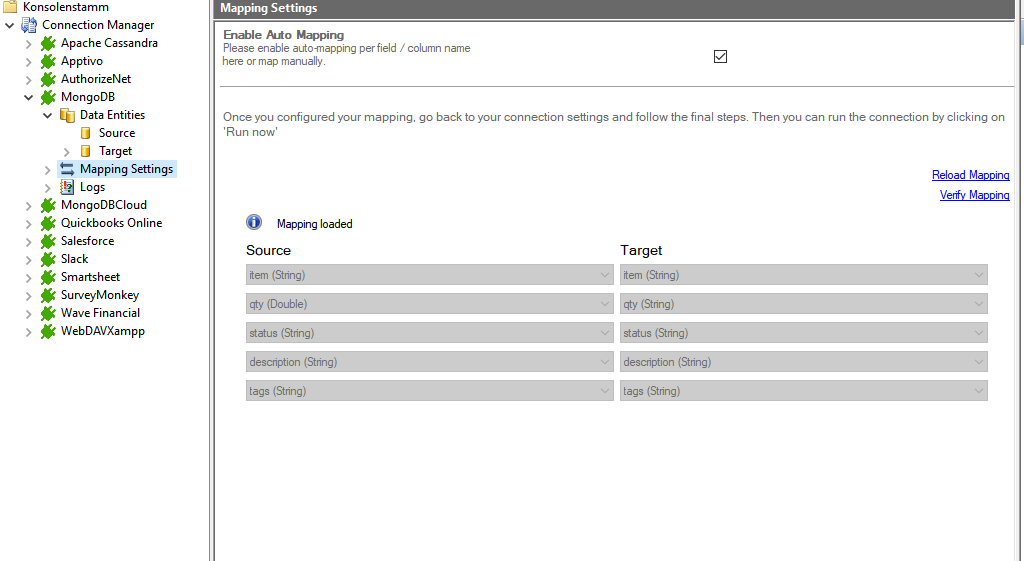

In the next step, we will configure our mapping settings. Click on the Mappings option on the left-hand pane. If your fields from SharePoint are named identical to the fields from your source system, the Enable Auto Mapping option will match those columns. Disabling this option allows you to match your columns as needed. We enabled auto-mapping in our setup. Save your changes by using the right-hand pane option Save Changes.

2.4. Running your connection

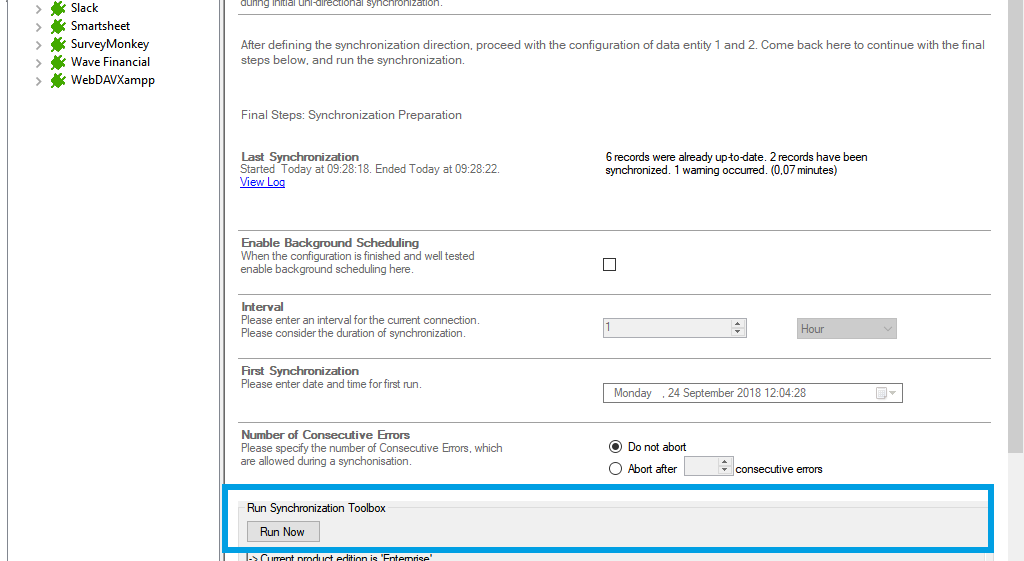

To run your connection switch back to the main connection configuration node and use the Run Now Button located on the bottom of the setup page. The Run Synchronization Toolbox will also display the synchronization process.

Below is a data preview of the information we have accessed in our source entity:

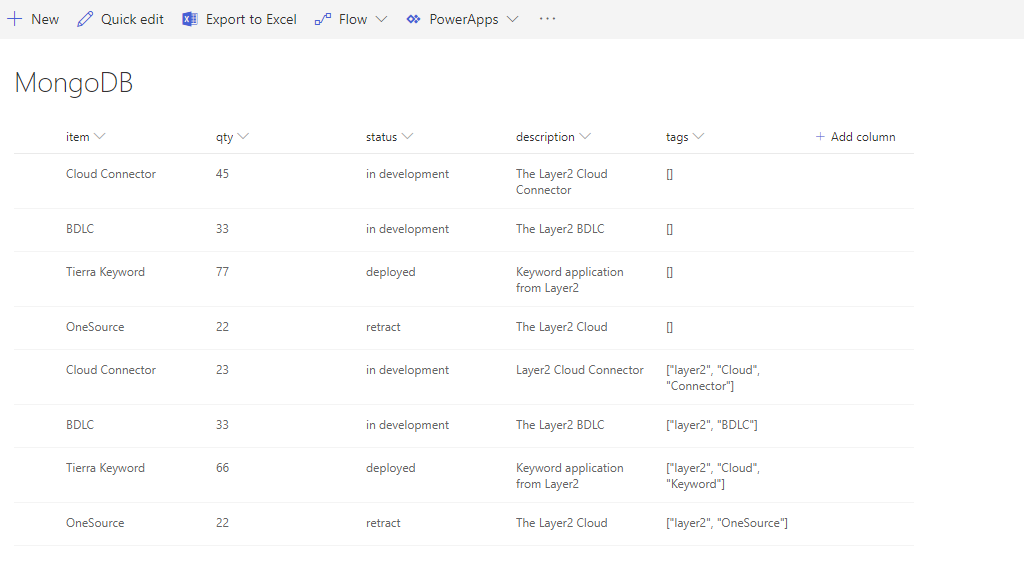

This will be the result in our SharePoint Online list after our initial successful synchronization:

If you want to use a bi-directional syncronization, you can now switch your connection directon after our first initial synchronization run finished successfully. See section 3.1 for further information.

3. Hints and known issues

3.1. Connection direction

As far as tested, this connection supports uni-directional as well as bi-directional synchronizations.

After adjusting the direction to bi-directional, you should check your Mappings settings again because some systems might include read-only columns that cannot be mapped directly.

We also recommend to choose a Conflict Resolution that matches your environments needs. You can find out more about the different conflict resolutions in our Layer2 Cloud Connector User Documentation.

3.2. Data model

To see all the tables and views you can access with the MongoDB provider, use these queries in the Select Statement:

SELECT * FROM sys_tables

SELECT * FROM sys_views

If there are more tables or views available, you can load them with the option "load more" in the popup window.
